Signature One
transformer-coupled moving coil phonostage

SigOnefrontclose

“As well as the exceptional noise floor, the extended frequency bandwidth provided me with a sound that just lit up my face with smiles.”
read the full review here

The Signature One is a phono pre-amp dedicated to low output moving coil cartridges and uses transformer coupling to achieve the best possible performance.

why transformers?
The very low signal levels produced by low output moving coil cartridges (usually less than a tenth of those produced by moving magnet cartridges) require careful handling to achieve a noise performance approaching the best theoretically possible. Transistors cannot get as close as transformer coupling can, and op-amps are even less so. Despite decades of research and development in transistor technology transformers still offer the best noise performance. This is an uncomfortable fact when the best possible performance is demanded because transformers are vastly more expensive than transistors, but it is a fact non the less.
Of course, noise performance alone isn't the only consideration when seeking the ultimate sound quality. To achieve the wide bandwidth and low distortion required for superb sound the transformers employed have to be very high quality. For this reason the transformers used in the Signature One are supplied by Lundahl of Sweden. The core material used is a cobalt based uncut amorphous strip which gives a high inductance factor (to extend the low frequency bandwidth) without the need for an excessive number of turns of wire, which in turn keeps the winding resistance low (to minimise Johnson noise) and inter-winding capacitance low (to extend the high frequency bandwidth and to minimise ringing). The unusual coil geometry also has the benefit of rejecting interference from external stray magnetic fields to minimise hum pickup.
However, the real benefit of using transformers is the sublime sound quality. This is due to the very different way in which transformers behave compared to transistors. Whereas the distortion spectrum of a transistor circuit tends to produce increasing distortion as frequency rises, transformers produce less distortion with rising frequency and produce lower levels of intermodulation distortion. This gives transformers a smooth and transparent sound without any of the unpleasant harshness which can afflict transistor circuits.
The Signature One's transformers can be configured for step-up ratios of 1:10 and 1:20, so that the vast majority of modern moving coil cartridges can be accomodated.

the active circuit
Following on from the Signature One's transformer-coupled inputs comes the discrete transistor section of the circuit. Using discrete transistors allows elegently simple Class A circuitry to be used. This is used in preference to the Class B or Class A/B push-pull circuitry employed within op-amps because Class A circuits are completely free from crossover distortion, and given that the total amount of distortion a circuit exhibits is less important than the type of distortion it exhibits, and crossover distortion is the worst sounding distortion mechanism possible, discrete Class A offers sound quality which simply sounds right. Whereas op-amps use negative feedback to reduce crossover distortion, Class A circuits avoid it altogether and so sound natural and fatigue-free.
Following the first active gain stage is the passive RIAA equalisation using multiple audiophile polypropylene capacitors. Then comes the second active gain stage and a Sziklai-configured output buffer for low distortion and low output impedance capable of driving any interconnect cable.

the power supply
The signature One's power supply is an onboard linear regulated DC supply using a toroidal mains transformer for low magnetic field radiation, oversized reservoir capacitors with two stages of filtering and a low noise discrete transistor regulator. Since the DC supply is the raw material from which the amplifier creates the output signal this attention to detail pays dividends in a high signal-to-noise ratio and by revealing low level detail.
There is also an earth link/lift switch so that hum-free performance can be achieved regardless of the turntable's earth wiring scheme.

UK production
The Signature One is designed and built in the UK. Each unit is carefully assembled in-house with rigorous and continuous quality control and thoroughly tested before approval for sale. Each unit is built with the kind of pride and care that is only possible with small scale manufacture by people with a passion for quality audio and music reproduction

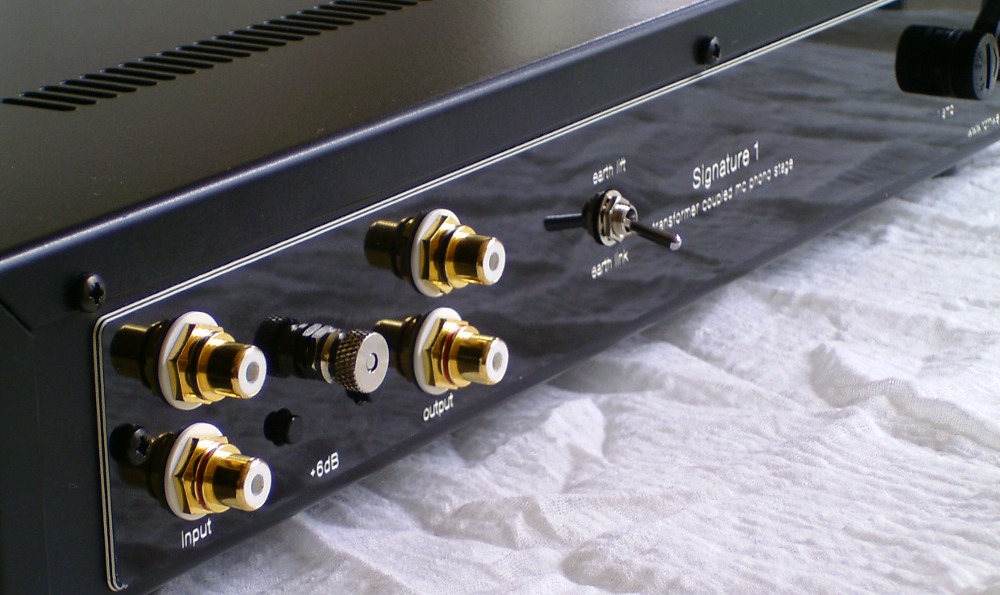

SigOnebackclose

specifications

gain
input impedance
low gain
high gain
output impedance
sensitivity for 500mV o/p
low gain
high gain
headroom
signal/noise
power supply
mains voltage
power consumption
dimensions
weight


62dB/68dB

470 ohms
117 ohms
75R

0.4mV @ 1kHz
0.2mV @ 1kHz
>20dB
>87dB
internal, linear regulated 24 volts DC
120VAC/235VAC
2W
430 x 250 x 74 mm
4kg


How to buy
The cost is £2200 (uk retail) and units can be obtained from our hi-fi dealers (full list) or by contacting Rothwell Audio Products directly by email or telephone (+44 (0)1204 366133) or from the online shop.
